RJ45 Plug

Products > Plug & Keystone > RJ45 Plug

RJ45 Plug

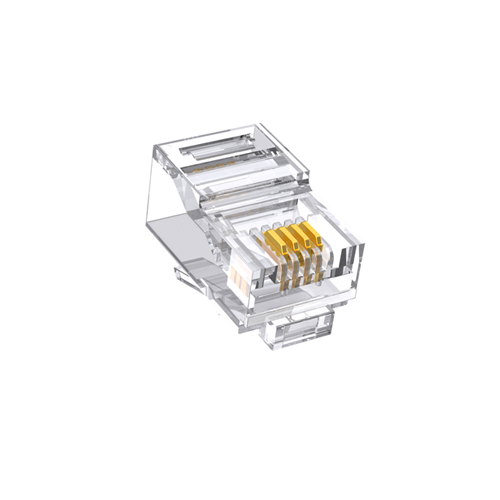

RJ11
Type6P4C / 6P2C
Housing MaterialPC, Transparent
Pin Material Copper Alloy w/ 3μ gold plated
Pin Type 3 Prong
Plug Insertion Life
≥ 1000 times


Cat.5
Type8P4C
Housing MaterialPC, Transparent
Pin Material Copper Alloy w/ 3μ gold plated
Pin Type 3 Prong
Plug Insertion Life
≥ 1000 times


Cat.5e
TypeUnshielded / Shielded
Housing MaterialPC, Transparent / Metal
Pin Material Nickel plated copper  w/ 3μ gold plated in remating area
Pin Type 3 Prong
Plug Insertion Life
≥ 1000 times
Dimension 22.4 mm x 11.6 mm x 8 mm

Cat.6A
TypeUnshielded / Shielded
Housing MaterialPC, Transparent / Metal
Pin Material Nickel plated copper  w/ 3μ gold plated in remating area
Pin Type 3 Prong
Plug Insertion Life
≥ 1000 times
Dimension 22.4 mm x 11.6 mm x 8 mm


Cat.7
TypeShielded + 28 mm Dovetail Clamp
Housing MaterialMetal
Pin Material Nickel plated copper  w/ 50μ gold plated in remating area
Pin Type 3 Prong
Plug Insertion Life
≥ 1000 times
Dimension 22.4 mm x 11.6 mm x 8 mm


Cat.8
TypeShielded + 28 mm Dovetail Clamp
Housing MaterialMetal
Pin Material Nickel plated copper  w/ 50μ gold plated in remating area
Pin Type 3 Prong
Plug Insertion Life
≥ 1000 times
Dimension 22.4 mm x 11.6 mm x 8 mm
