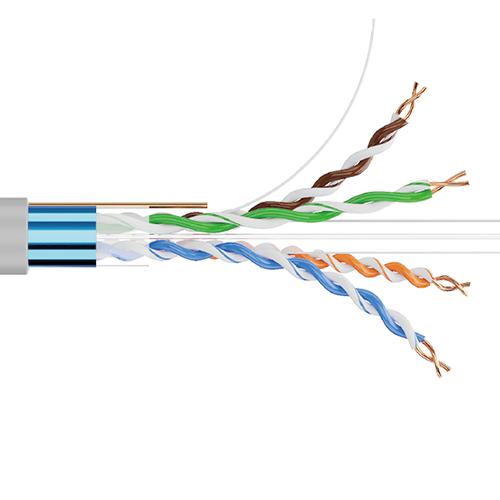

Cat6A F/UTP 186P Indoor Shielded Ethernet Cable

Product Highlights

● Proven shield technology to improve RFI, EMI and alien crosstalk performance

● Eco-freindly PVC jacket

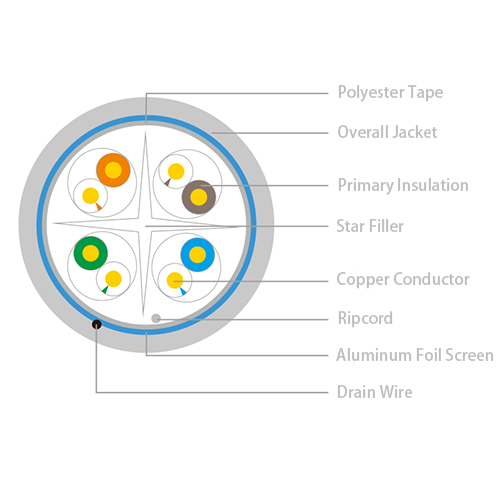

Special star filler reduces crosstalk and maintains impedance stability

● TIA568C.2 compliant and up to 550MHz bandwidth

General Specifications
Product NumberHKN-186P
ANSI/TIA Category6A
Cable TypeF/UTP
Conductor TypeSolid
Conductors Quantity8

Pairs Quantity

StandardsANSI/TIA-568B  | ISO/IEC 11801 | IEC61156  | IEC61034  | EN50399  | IEC60332-1  | IEC60332-3  | IEC60754

Diameter Over Jacket7.2 ± 0.2mm
Conductor Gauge23 AWG

Material Specifications

Conductor MaterialOFC
Insulation MaterialHDPE
Jacket MaterialPVC
Jacket ColorsBlack (BK); Blue (BL); Brown (BR); Gray (GA); Green (GR); Orange (OR); Red (RD); White (WH); Yellow (YE)
ScreenOverall Aluminum  Foil Screen

Reels1,000 feet/305m

Electrical Specifications
Characteristic Impedance100±15Ω (1-500MHz)
DC Resistance≤9.5Ω/100M
Insulation Resistance≥5000MΩ/KM
Mutual Capacitance≤5.6nF/100M
Nominal Velocity of Propagation (NVP)69%

Physical  Specifications
Static Bending Radius≥8 x Overall Diameter
Dynamic Bending Radius≥8 x Overall Diameter
Maximum Pulling Load800N
Installation Temperature-15℃ to +70℃ (+5℉ to +158℉)
