Cat6A SF/UTP 186PPS Outdoor Shielded Ethernet Cable



Product Highlights

● Comes with PE waterpoof layer ideal for outdoor wet environment wiring

● Proven shield technology to improve RFI, EMI and alien crosstalk performance

● CE, RoHS, FCC and REACH compliant

● Special star filler reduces crosstalk and maintains impedance stability

● TIA568C.2 compliant and up to 1Gbps data transmission rate



General Specifications
Product NumberHKN-186PPS
ANSI/TIA Category6A
Cable TypeSF/UTP
Conductor TypeSolid
Conductors Quantity8

Pairs Quantity

4
Standards

ANSI/TIA-568B  | ISO/IEC 11801 | IEC61156  | IEC61034  | EN50399  | IEC60332-1  | IEC60332-3  | IEC60754


Dimensions
Diameter Over Jacket7.4 ± 0.2mm
Conductor Gauge23 AWG


Material Specifications

Conductor MaterialOFC
Insulation MaterialHDPE
Jacket MaterialPVC
Jacket ColorsBlack (BK)

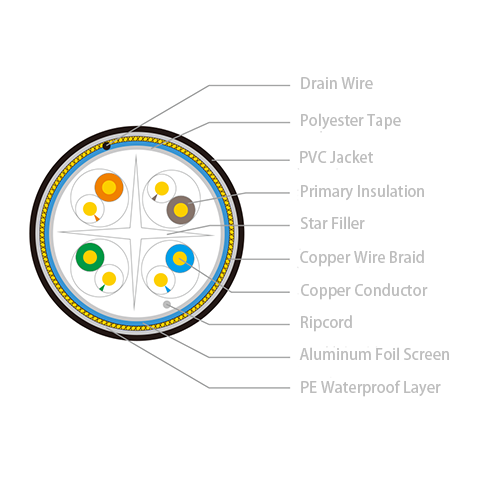

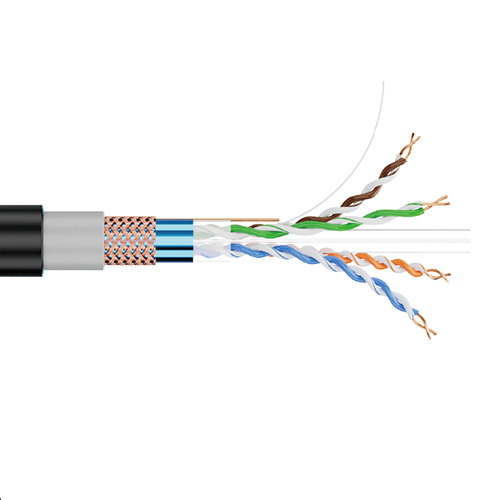

ScreenOverall Aluminum  Foil Screen + Copper Wire Braid


Packaging
Reels1,000 feet/300m


Electrical Specifications
Characteristic Impedance100±15Ω (1-500MHz)
DC Resistance≤9.5Ω/100M
Insulation Resistance≥5000MΩ/KM
Mutual Capacitance≤5.6nF/100M
Nominal Velocity of Propagation (NVP)69%


Physical  Specifications
Static Bending Radius≥8 x Overall Diameter
Dynamic Bending Radius≥8 x Overall Diameter
Maximum Pulling Load600N
Installation Temperature-15℃ to +70℃ (+5℉ to +158℉)
