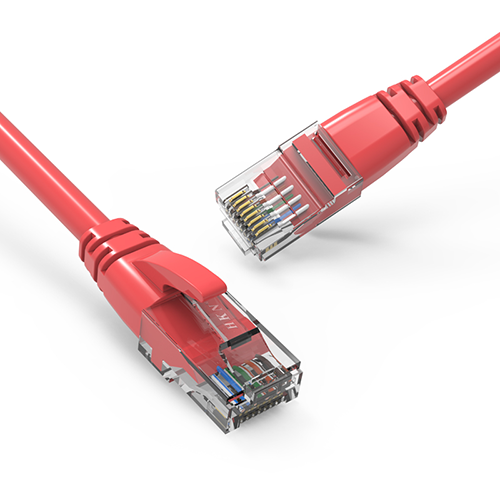

Cat5e UTP Patch Cord
Cat5e UTP Patch Cord
Product Highlights
● CE, RoHS, FCC and REACH compliant
● Eco-freindly PVC jacket
● Fluke tested
● Bandwidth Frequency ≥ 500MHz
| General Specifications | |
| Product Number | HKN-CAT5E |
| ANSI/TIA Category | 5e |
| Cable Type | UTP |
| Conductor Type | Solid |
| Conductors Quantity | 8 |
Pairs Quantity | 4 |
| Standards | ANSI/TIA-568B ｜ ISO/IEC 11801 ｜ IEEE802.3at ｜ POE & POE+ |
| Wiring | T568B |
| Interface | RJ45 Plug |
| Dimensions | |
| Diameter Over Jacket | 5.0 ± 0.1mm |
| Conductor Gauge | 28 AWG |
| Cable Length (m) | 1/ 1.5/ 2/ 3/ 5/ 10/ 15/ 20/ 25/ 30 |
| Material Specifications | |
| Conductor Material | Copper, CCA available |
| Insulation Material | HDPE |
| Jacket Material | PVC |
| Jacket Colors | Blue (B); Gray |
| Screen | - |
| Contact Plating Material | Gold in remating area |
| Packaging | |
| Reels | 1,000 feet/300m |
| Electrical Specifications | |
| Characteristic Impedance | 100±15Ω (1-500MHz) |
| DC Resistance | ≤0.3Ω |
| Safety Voltage Rating | 300 V |
| Physical Specifications | |
| Maximum Pulling Load | 500N |
| Installation Temperature | -20℃ to +60℃ (-4℉ to +140℉) |
| Plug Insertion Life | ≥ 1500 times |
